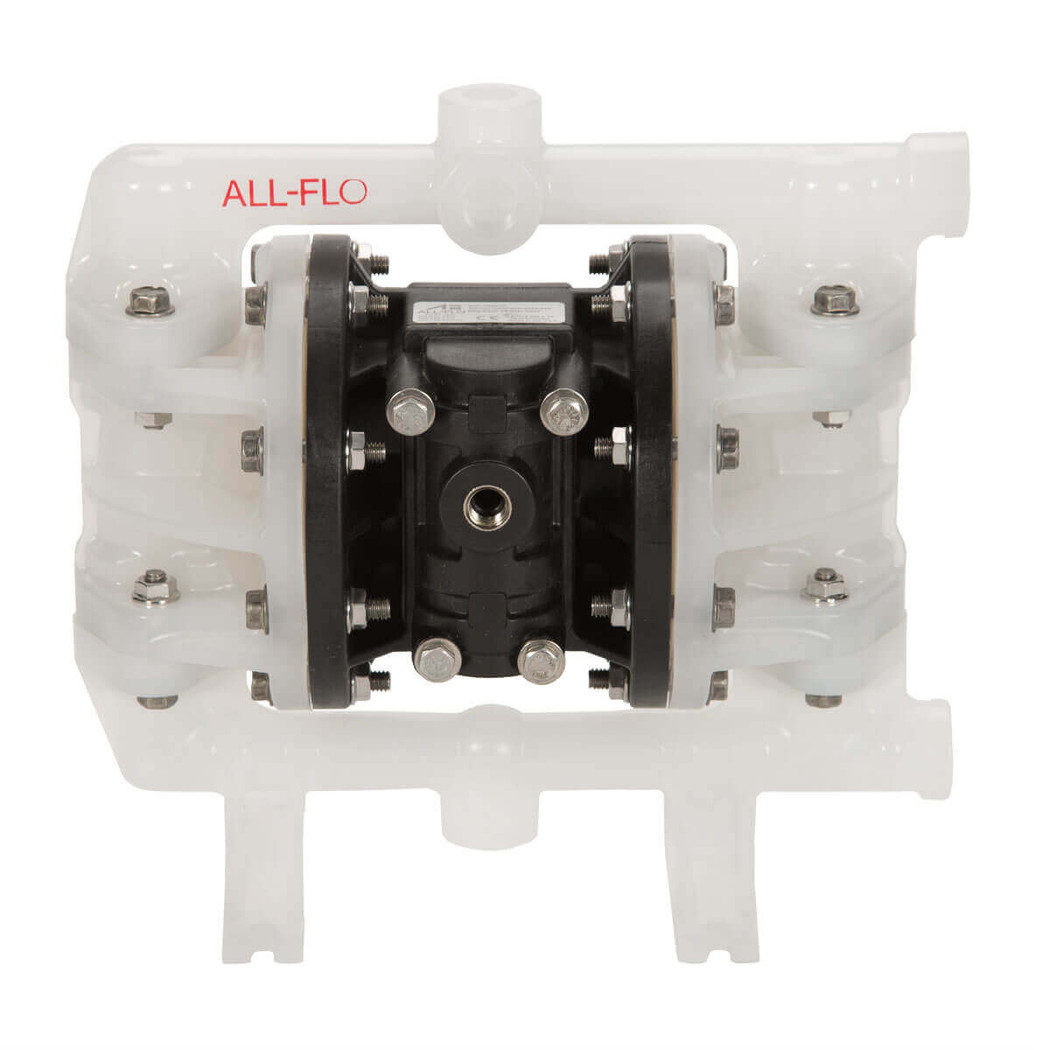

All-Flo 1/2" Plastic Pump A050-SPP-GGPN-S70

Product Description

All-Flo Air Operated Double Diaphragm Pump

Part Number: A050-SPP-GGPN-S70

Air Inlet: 1/4"

Air Inlet Connection Size: 1/4 in. FNPT

Air Exhaust Connection Size: 3/8 in. FNPT

Liquid Inlet: 1/2"

Liquid Discharge: 1/2"

Liquid End: Polypropylene

Liquid Port Size: 1/2 in.

Diaphragms: Geolast

Ball Valves: Geolast

Seats: Ploypropylene

O-Rings: Buna-N

Connection Type: FNPT (FBSPT)

Max Flow Rate: 17 gpm (64.6 lpm)

Max Pressure: 120 psi (8.2 bar)

Max Diameter: 1/8" (3.2 mm)

Max Suction Lift Capability: 15 ft-H2O (4.6 m-H2O) Dry / 26 ft-H2O (7.9 m-H2O) Wet

Displacement Per Stroke: 0.03 gal (0.10 L)

Standard Suction Port: Right

Standard Discharge Port: Right

All-Flo Air Operated Double Diaphragm Brochure

All-Flo A050 Plastic Pump Installation and Operations Manual

All-Flo A050 Exploded View

All-Flo A050 Performance Curve
