P/N 02-9805-56

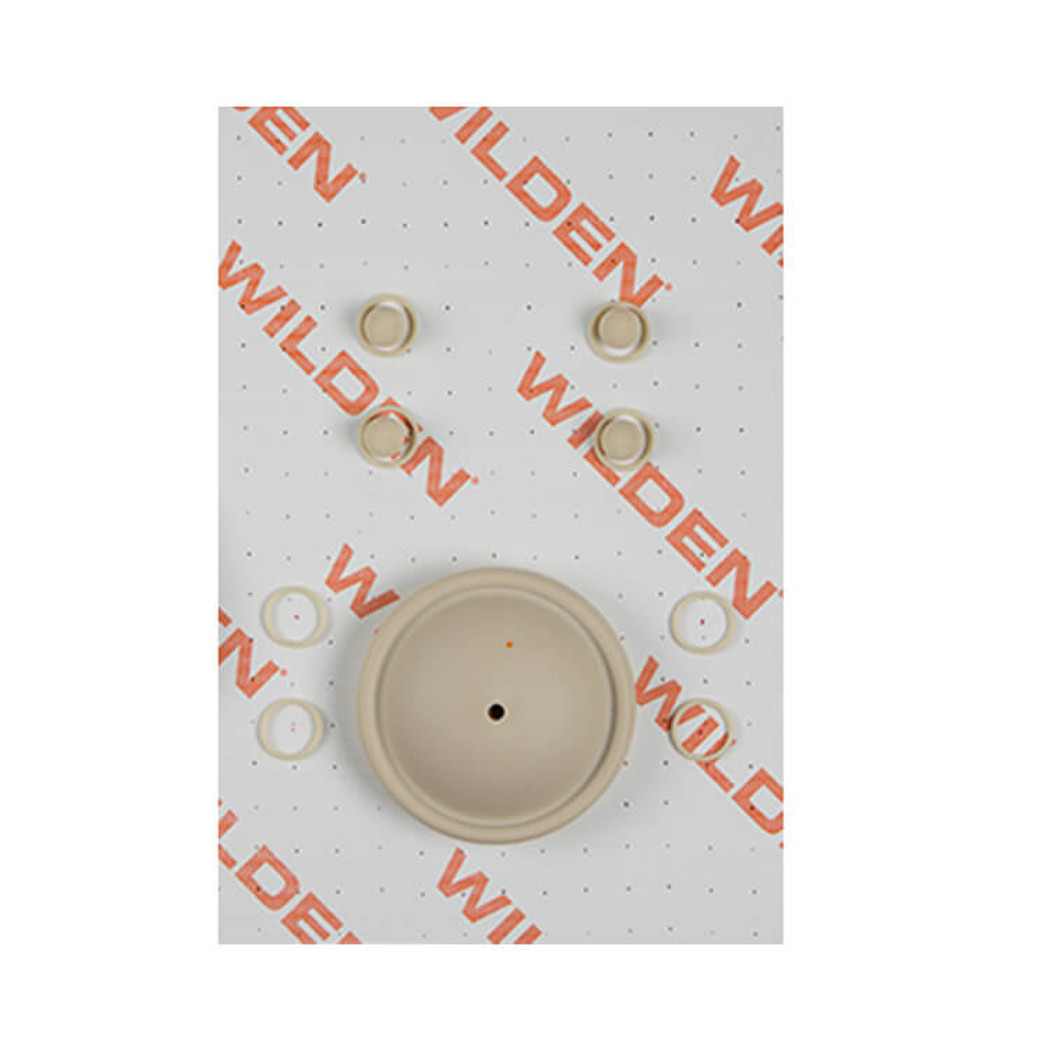

Wilden Wet Repair Kit, 1" Clamped Plastic, Hytrel®
Genuine Wilden parts.
Includes only elastomers located on the wet side of the pump. Contains replacements for primary wear parts. Vacuum sealed. Preserve Wilden factory warranties.
Connection Inlet Size: 1" (25 mm)
Wetted Path Material: Polypropylene, PVDF
Construction: Clamped
Primary Diaphragms Material: Hytrel®
Product Weight: 2 lbs (0.9 kg)
OEM Part Number: WIL-02-9805-56
Includes:
| Part Number | Description | Qty |
| 02-1010-56 | Diaphragm, Primary, Saniflex |
2 |
| 02-1080-56 | Ball, Valve, Saniflex |
4 |
| 02-1300-60-400 | O-Ring, TFE/VT,M2R |
4 |
| 02-1200-60-400 | O-Ring, TFE/VT,M2R |
4 |
| 02-1220-60 | O-Ring, TFE/Viton | 2 |
| 02-1230-60 | O-Ring, TFE/Viton |
2 |
Voigt-Abernathy displays pricing following our manufacturer's internet pricing policies. Voigt-Abernathy offers special pricing for many of our customers. To get a custom pricing quote, call us at (205) 655-0434 or email sales@voigtab.com
