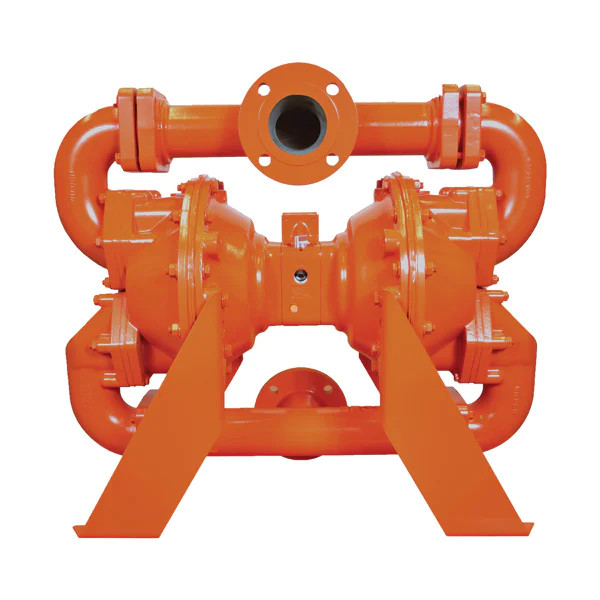

15-13270 Wilden AODD Pump, Aluminum, 3" Pro-Flo® SHIFT Brahma™, Bolted, Flanged, w/ Santoprene®
15-13270 Wilden AODD Pump, Aluminum, 3" Pro-Flo® SHIFT Brahma™, Bolted, Flanged, w/ Santoprene®
15-13270 Wilden AODD Pump, Aluminum, 3" Pro-Flo® SHIFT Brahma™, Bolted, Flanged, w/ Santoprene®
15-13270 Wilden AODD Pump, Aluminum, 3" Pro-Flo® SHIFT Brahma™, Bolted, Flanged, w/ Santoprene®
15-13270 Wilden AODD Pump, Aluminum, 3" Pro-Flo® SHIFT Brahma™, Bolted, Flanged, w/ Santoprene®
15-13270 Wilden AODD Pump, Aluminum, 3" Pro-Flo® SHIFT Brahma™, Bolted, Flanged, w/ Santoprene®
Previous Next

15-13270 Wilden AODD Pump, Aluminum, 3" Pro-Flo® SHIFT Brahma™, Bolted, Flanged, w/ Santoprene®

Write a Review
SKU: 15-13270
Shipping: Calculated at Checkout
$5,566.50

15-13270 Wilden AODD Pump, Aluminum, 3" Pro-Flo® SHIFT Brahma™, Bolted, Flanged, w/ Santoprene®

$5,566.50
Product Details

P/N 15-13270 Wilden AODD Pump, Aluminum, 3" Pro-Flo® SHIFT Brahma™, Bolted, Flanged, w/ Santoprene®

XPS1510/AZAAA/WWL/WF/MEP

The Wilden 15-13270 Pro-Flo SHIFT Brahma 3" AODD Pump by Wilden is a 3-inch air-operated double diaphragm pump built from aluminum with Santoprene® diaphragms and ball valves for reliable industrial fluid transfer. Featuring the Pro-Flo SHIFT Brahma design with a TPE IPD full-stroke diaphragm, it provides efficient and adaptable performance for slurry, abrasive, or viscous fluid applications. The pump is configured with flanged ANSI center-horizontal-back inlet and center-horizontal-front discharge connections, making it suitable for a wide range of industries including manufacturing and processing. It is ATEX, CE, and UKCA certified for use in regulated environments.


Model (in.): 3
Technical Construction: BOLTED
Wetted Path Material: ALUMINUM
Diaphragm Material: Santoprene®
Diaphragm Design: TPE IPD
Diaphragm Stroke: Full-Stroke
Connection Standard: ANSI
Inlet Size (in.): 3.0
Inlet Orientation: CENTER HORIZONTAL BACK
Discharge Size (in.): 3.0
Discharge Orientation: CENTER HORIZONTAL FRONT
Outer Piston Materials: NO OUTER PISTON
Air Side Material: ALUMINUM
Valve Material: Santoprene®
Valve Type: VALVE BALL
Valve Seat MATERIAL: MILD STEEL
O Rings Gasket Material: EPDM
Hardware Material: DIAPHRAGM DEPENDENT
Muffler Material: ALUMINUM
Self Priming: YES
Power Source: COMPRESSED AIR
Max Operating Temperature (°F): 225.0
Min Operating Temperature (°F): -40.0
Atex Rated: YES
CE: YES
UKCA: YES
FDA: NO
3A: NO
EHEDGE: NO
UL: NO
CSA: NO
Country Of Origin: UNITIED STATES

BROCHURE Wilden Brahma™ Series

SPEC SHEET 76 mm (3") Pro-Flo Shift Brahma Metal Pump

76 mm (3") Pro-Flo SHIFT Brahma Bolted Metal Pump
