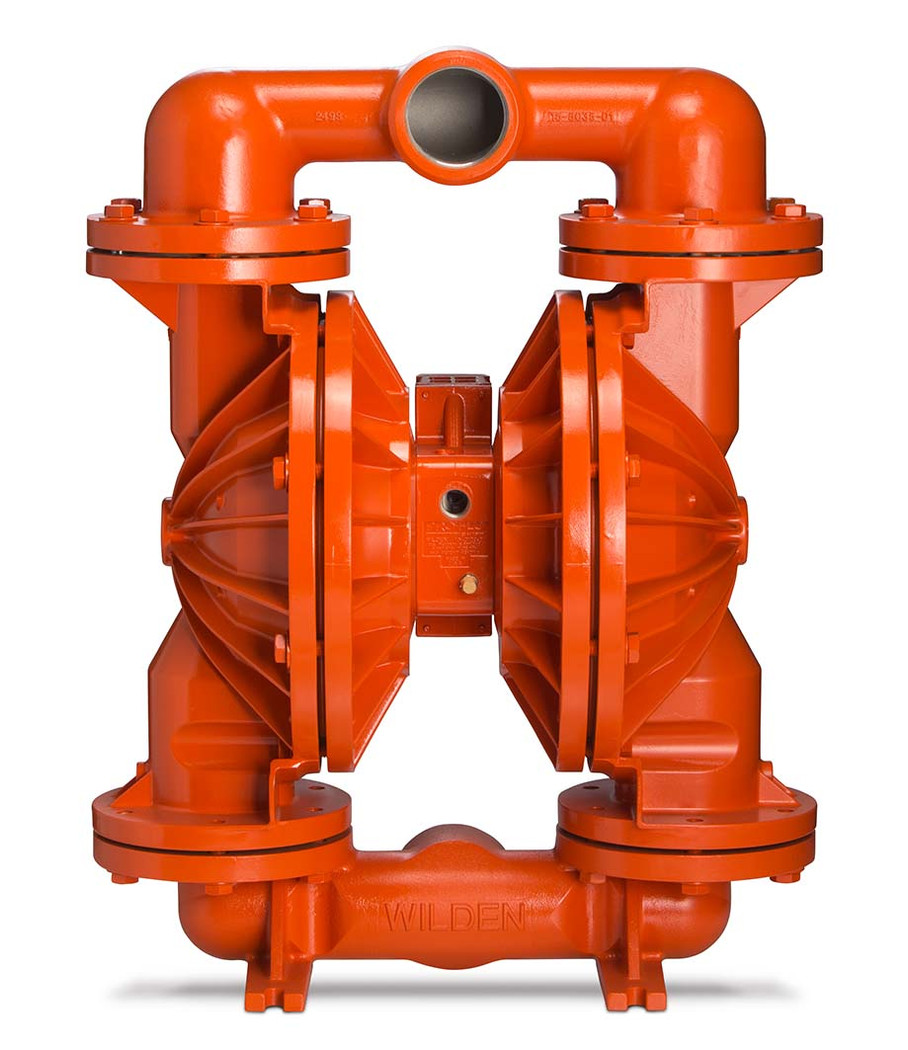

3" Wilden Air Operated Double Diaphragm (AODD) Pump
XPS1520/WZAAA/WWL/EP/WF WILDEN PUMP
Part Number: 15-13059
Series |
Pro-Flo Shift |
Product Model |
PS1520 |
Connection Outlet Size |
3" (76 mm) |
Connection Inlet Size |
3" (76 mm) |
Wetted Path Material |
Iron |
Construction |
Bolted |
Connection Type |
NPT |
Diaphragm Design |
IPD (Integral Piston Diaphragm) |
Diaphragm Flow Capacity |
Full Stroke |
Max Flow Capacity |
271 gpm |
Ball Valves |
Wil-Flex (Santoprene) |
Valve Seats |
EPDM |
Diaphragms |
Wil-Flex (Santoprene) |
Differential Pressure Ratio |
1:1 |
Max Air Inlet Pressure |
125 psi |
Max Solid Size |
1/2" (13 mm) |
Lower Temperature Limit |
40 F |
Upper Temperature Limit |
225 F |
ATEX Certified |
Yes |
Wilden General Pump Brochure
