Product Description
P/N 15-12398

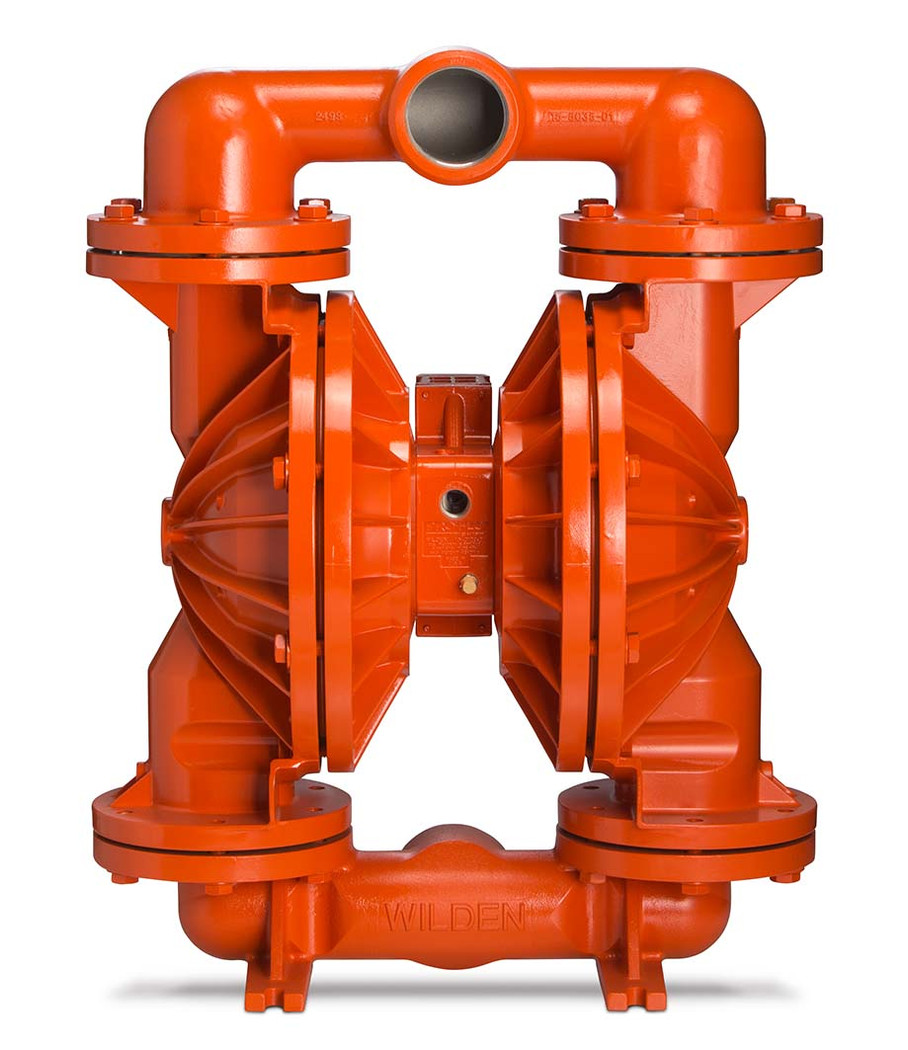

Air Operated Double Diaphragm pump, 3".
Genuine Wilden pump is efficient and high flowing. Bolted construction for superior containment. ATEX compliant. Increased flow rates and operational efficiency. Shear-sensitive and dry run capable. Longest Mean Time Between Repair (MTBR). Increased On/Off reliability.
Series: Pro-Flo Shift
Product Model: PS1520
Connection Outlet Size: 3" (76 mm)
Connection Inlet Size: 3" (76 mm)
Wetted Path Material: Aluminum
Construction: Bolted
Connection Type: NPT
Diaphragm Design: Traditional
Diaphragm Flow Capacity: Full Stroke
Max Flow Capacity: 271 gpm
Valve Balls: Buna
Seats Material: Buna
Differential Pressure Ratio: 1:1
Max Air Inlet Pressure: 125 psi
Max Solid Size: 1/2" (13 mm)
Lower Temperature Limit: 10 F
Upper Temperature Limit: 180 F
Primary Diaphragms Material: Buna
Product Weight: 152 lbs (68.4 kg)
