Product Description
P/N 15-12343

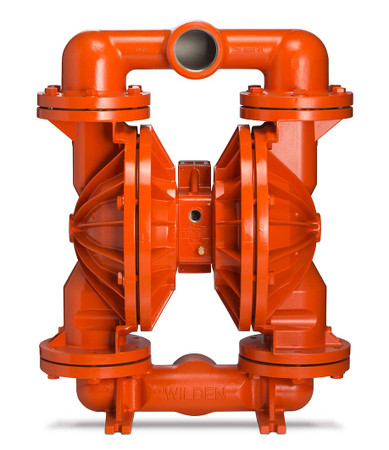

Air Operated Double Diaphragm pump, 3”.
Genuine Wilden pump is efficient and high flowing. Bolted construction for superior containment. ATEX compliant. Increased flow rates and operational efficiency. Shear-sensitive and dry run capable. Longest Mean Time Between Repair (MTBR). Increased On/Off reliability.
Series: Pro-Flo Shift
Product Model: PS15
Connection Outlet Size: 3" (76 mm)
Connection Inlet Size: 3" (76 mm)
Wetted Path Material: Aluminum
Construction: Clamped
Connection Type: NPT
Diaphragm Design: EZ-Install
Diaphragm Flow Capacity: Full Stroke
Max Flow Capacity: 238 gpm
Valve Balls: Santoprene
Seats Material: Santoprene
Differential Pressure Ratio: 1:1
Max Air Inlet Pressure: 125 psi
Max Solid Size: 3/8" (9.6 mm)
Lower Temperature Limit: -40 F
Upper Temperature Limit: 225 F
Primary Diaphragms Material: Santoprene
Product Weight: 121 lbs (54.45 kg)
