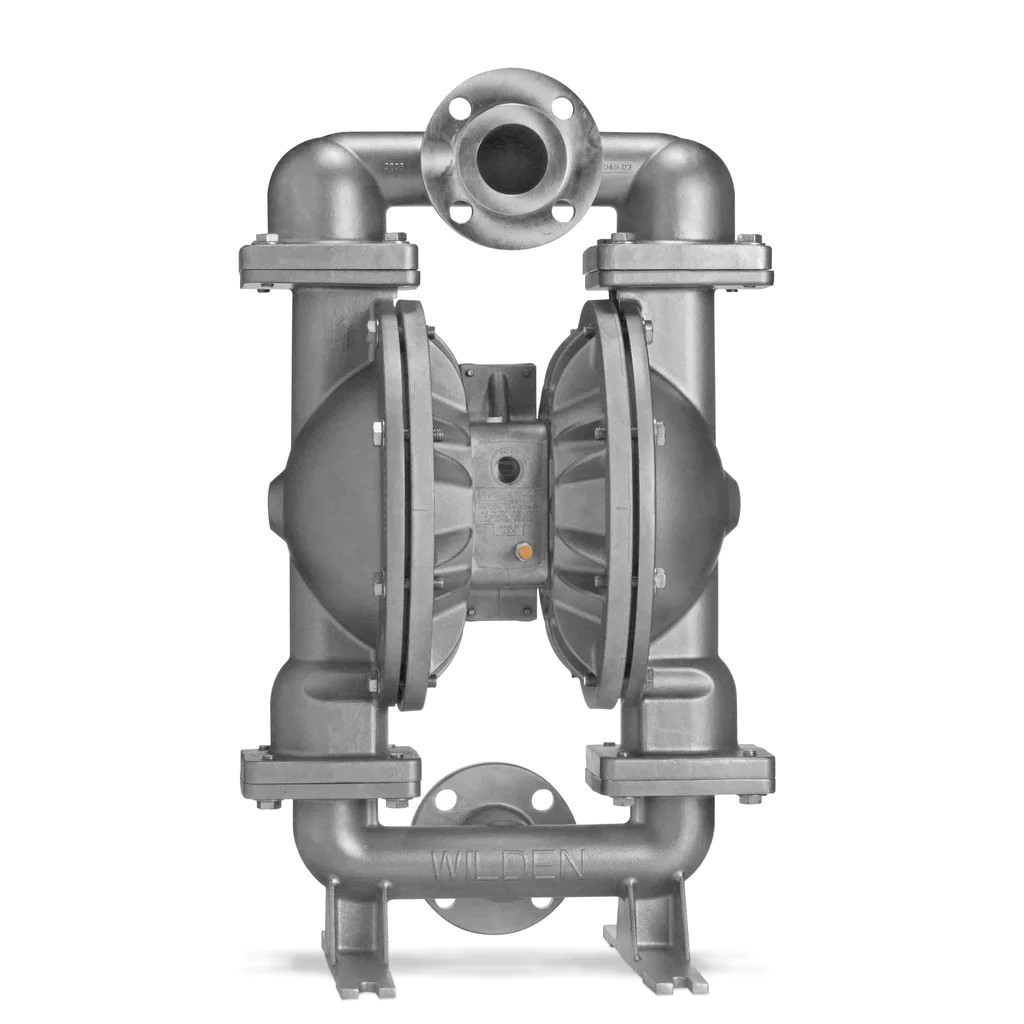

P/N 08-14900 Wilden AODD Pump, Stainless Steel, 2" Pro-Flo® SHIFT FIT Series, Bolted, Flanged, w/ PTFE
The Wilden 08-14900 Pro-Flo SHIFT FIT Series 2" AODD Pump by Wilden is a 2-inch air-operated double diaphragm pump constructed from stainless steel with PTFE/Santoprene® diaphragms and PTFE ball valves for strong chemical resistance and durability. It delivers up to 173 GPM at 125 PSI and is capable of handling slurry, abrasive, or highly viscous fluids up to 125,000 cP. The bolted Pro-Flo SHIFT FIT design with a traditional full-stroke diaphragm provides versatile and reliable performance, while flanged ANSI center-horizontal-back inlet and center-horizontal-front discharge connections support stable installation across various industrial fluid transfer applications. The pump is ATEX, CE, and UKCA certified.
| Model (in.): |
2 |
| Technical Construction: |
BOLTED |
| Wetted Path Material: |
STAINLESS STEEL |
| Diaphragm Material: |
PTFE |
| Diaphragm Design: |
TRADITIONAL |
| Diaphragm Stroke: |
Full-Stroke |
| Connection Standard: |
ANSI |
| Inlet Size (in.): |
2.0 |
| Inlet Orientation: |
CENTER HORIZONTAL BACK |
| Discharge Size (in.): |
2.0 |
| Discharge Orientation: |
CENTER HORIZONTAL FRONT |
| Outer Piston Materials: |
STAINLESS STEEL |
| Air Side Material: |
ALUMINUM |
| Valve Material: |
PTFE |
| Valve Type: |
VALVE BALL |
| Valve Seat MATERIAL: |
STAINLESS STEEL |
| O Rings Gasket Material: |
PTFE |
| Hardware Material: |
STAINLESS STEEL |
| Muffler Material: |
ALUMINUM |
| Self Priming: |
YES |
| Power Source: |
COMPRESSED AIR |
| Air Inlet Connection: |
3/4" FNPT |
| Maximum Allowable Operating Pressure (psig): |
125.0 |
| Max Air Pressure (psig) |
125.0 |
| Max Diameter Solids (in): |
0.25 |
| Max Flow Rate: (gpm) |
173.0 |
| Flow Rate 40 Psi (gpm): |
121.0 |
| Flow Rate 50 Psi (gpm): |
110.0 |
| Flow Rate 60 Psi (gpm): |
98.0 |
| Flow Rate 70 Psi (gpm): |
86.0 |
| Flow Rate 80 Psi (gpm): |
73.0 |
| Flow Rate 90 Psi (gpm): |
60.0 |
| Flow Rate 100 Psi (gpm): |
45.0 |
| Flow Rate 120 Psi (gpm): |
0.0 |
| Max Suction Lift Dry (ft.): |
21 |
| Max Suction Left Wet (ft.): |
28.4 |
| Max Operating Temperature (°F): |
220.0 |
| Min Operating Temperature (°F): |
40.0 |
| Max Viscosity (cP): |
125000 |
| Max Air Consumption (psi): |
110.0 |
| Atex Rated: |
YES |
| CE: |
YES |
| UKCA: |
YES |
| FDA: |
NO |
| 3A: |
NO |
| EHEDGE: |
NO |
| UL: |
NO |
| CSA: |
NO |
| Shipping Weight (lbs): |
178.0 |
| Shipping Dimensions: |
21.5" W X 17.75" L X 33.88" H |
| Country Of Origin: |
UNITIED STATES |
