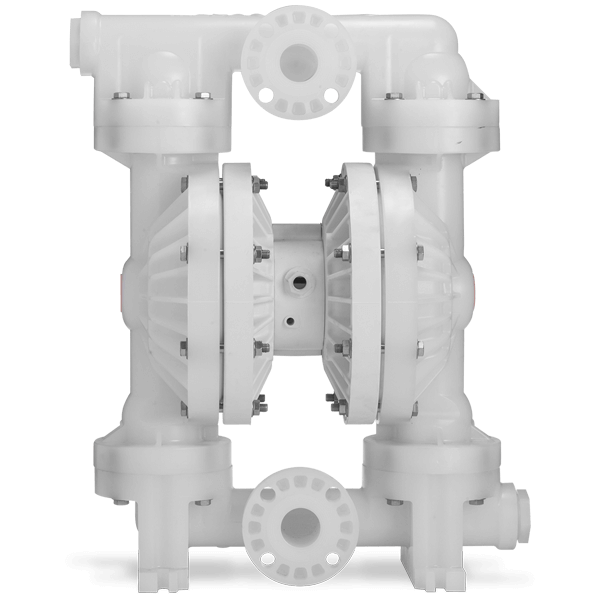

2" Wilden Air Operated Double Diaphragm (AODD) Pump
P800/PKPPP/TNU/TF/KTV/0690
Part Number: 08-13305
0690 = Center Ported
| Series | Pro-Flo |
| Product Model | P800 |
| Connection Outlet Size | 2" (51 mm) |
| Connection Inlet Size | 2" (51 mm) |
| Wetted Path Material | Polypropylene |
| Construction | Bolted |
| Connection Type | Flanged (Center Ported) |
| Diaphragm Design | Traditional |
| Diaphragm Flow Capacity | Reduced Stroke |
| Max Flow Capacity | 133 gpm |
| Ball Valves | PTFE |
| Valve Seats | PVDF (Kynar) |
| Diaphragms | PTFE w/ Neoprene Backup |
| Differential Pressure Ratio | 1:1 |
| Max Air Inlet Pressure | 125 psi |
| Max Solid Size | 1/4" (6 mm) |
| Lower Temperature Limit | 32 F |
| Upper Temperature Limit | 175 F |
| Weight: | 70 lbs. |
Recommended Spare Parts
04-9986-20, Air End Repair Kit
08-9815-55, Wet End Repair Kit
01-8340-99, Air Filter Regulator Kit, 1/2"
