P1/KKPPP/TNU/TF/KTV
Part Number: 01-2659

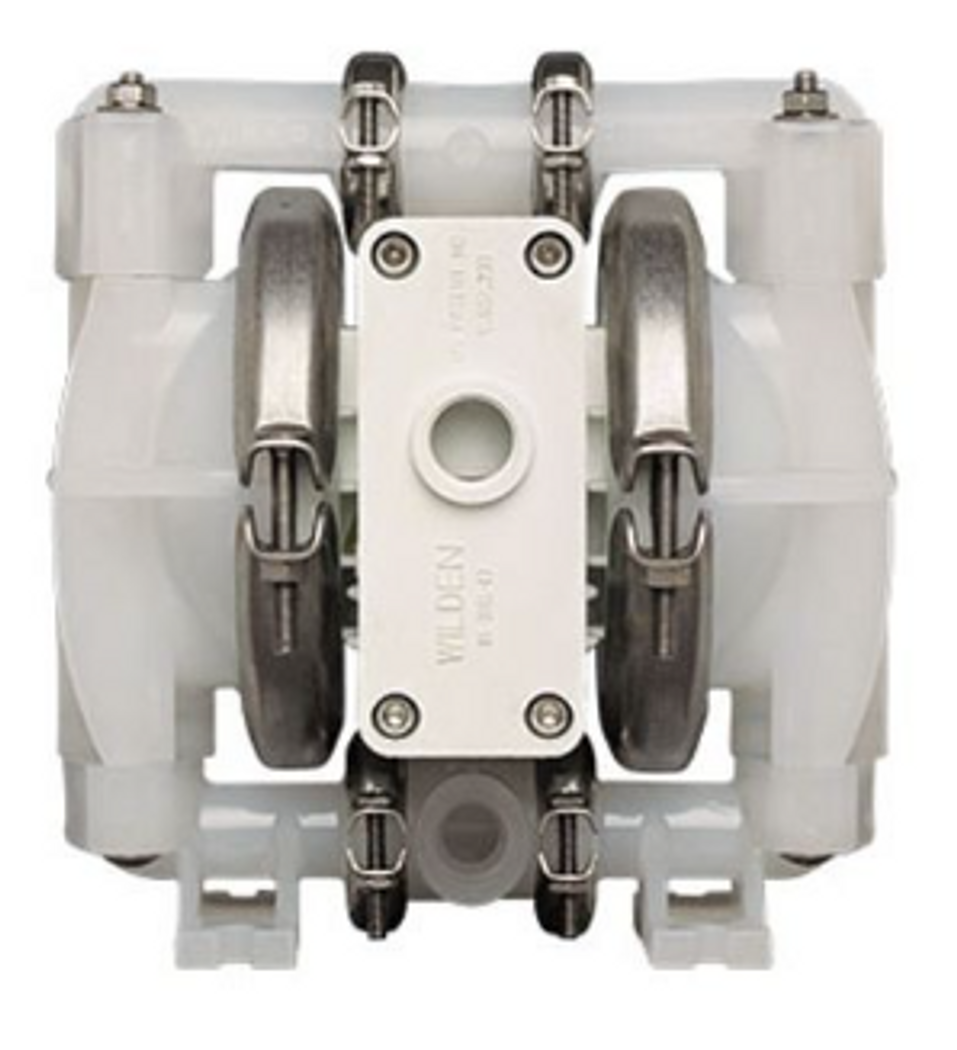

1/2" Wilden Air Operated Double Diaphragm (AODD) Pump
| Series | Pro-Flo |
| Product Model | P1 |
| Connection Outlet Size | 0.5" (13 mm) |
| Connection Inlet Size | 0.5" (13 mm) |
| Wetted Path Material | PVDF (Kynar) |
| Construction | Clamped |
| Connection Type | NPT |
| Diaphragm Design | Traditional |
| Diaphragm Flow Capacity | Reduced Stroke |
| Max Flow Capacity | 14.40 gpm |
| Primary Diaphragms | PTFE |
| Secondary Diaphragms | Neoprene |
| Valve Balls | PTFE |
| Seats Material | PVDF (Kynar) |
| Seats Seal | Teflon Encap. Viton (FKM) |
| Differential Pressure Ratio | 1:1 |
| Max Air Inlet Pressure | 120 psi |
| Max Solid Size | 1/16" (1.6 mm) |
| Lower Temperature Limit | 40 F |
| Upper Temperature Limit | 220 F |
| Weight | 11 lbs. |
Recommended Spare Parts
01-9985-20, Air End Repair Kit
01-9805-55, Wet End Kit
00-8340-99, Air Filter/Regulator Kit, 1/4"
