P100/KKPPP/TNU/TF/KTV/0790
Part Number: 01-10417

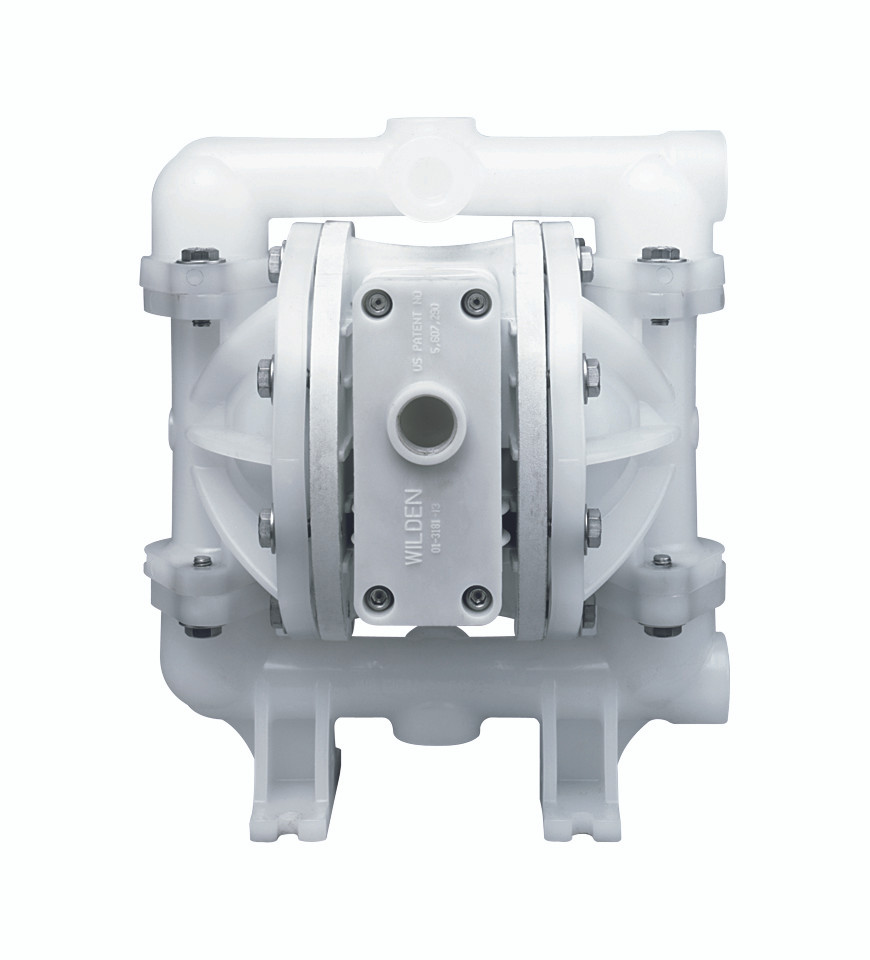

1/2" Wilden Air Operated Double Diaphragm (AODD) Pump
790 = Drum Pump Inlet Manifold
| Series | Pro-Flo |
| Product Model | P100 |
| Connection Outlet Size | 0.5" (13 mm) |
| Connection Inlet Size | 0.5" (13 mm) |
| Wetted Path Material | PVDF (Kynar) |
| Construction | Bolted |
| Connection Type | NPT |
| Diaphragm Design | Traditional |
| Diaphragm Flow Capacity | Reduced Stroke |
| Max Flow Capacity | 15.00 gpm |
| Primary Diaphragms | PTFE |
| Secondary Diaphragms | Neoprene |
| Valve Balls | PTFE |
| Valve Seats | PVDF (Kynar) |
| Seals | Teflon Encap. Viton |
| Differential Pressure Ratio | 1:1 |
| Max Air Inlet Pressure | 120 psi |
| Max Solid Size | 1/16" (1.6 mm) |
| Lower Temperature Limit | 40 F |
| Upper Temperature Limit | 225 F |
| Weight | 14 lbs. |
Recommended Spare Parts
01-9985-20, Air End Repair Kit
01-9815-55, Wet End Kit
00-8340-99, Air Filter/Regulator Kit, 1/4"
