P/N 01-0110

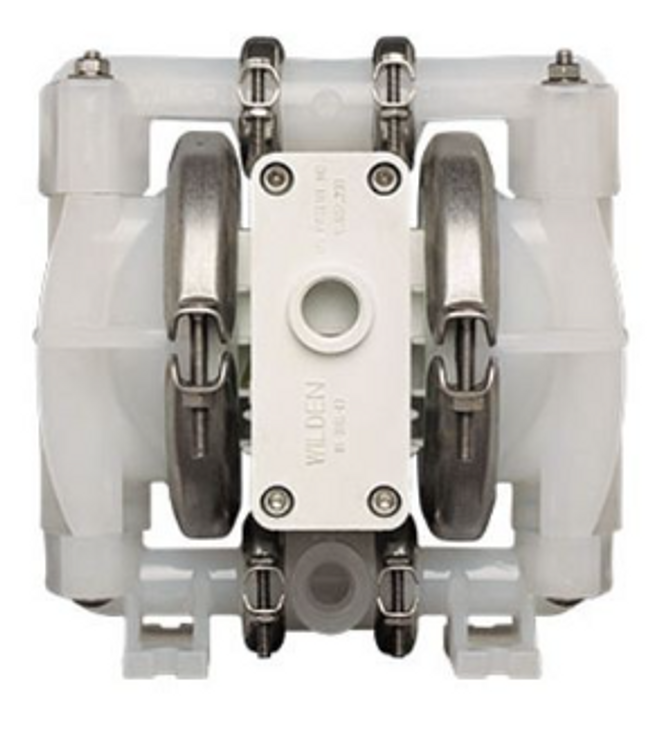

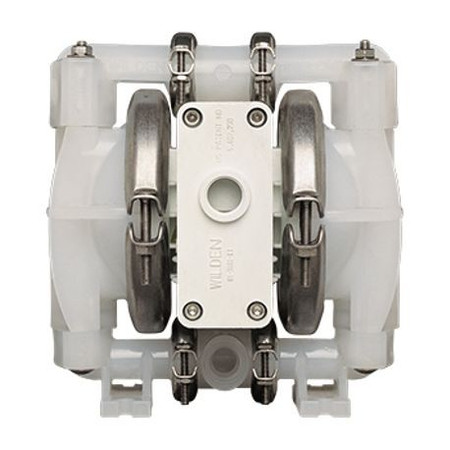

Air Operated Double Diaphragm (AODD) Pump
Genuine Wilden pump with clamped connections for faster maintenance. Self-priming. Dry run without damage. Shear-sensitive. Longest Mean Time Between Repair (MTBR). Superior anti-freezing. Increased On/Off reliability.
Series: Pro-Flo
Product Model: P1
Connection Outlet Size: 0.5" (13 mm)
Connection Inlet Size: 0.5" (13 mm)
Wetted Path Material: Polypropylene
Construction: Clamped
Connection Type: NPT
Diaphragm Design: Traditional
Diaphragm Flow Capacity: Full Stroke
Max Flow Capacity: 15 gpm
Valve Balls: Santoprene
Seats Material: PVDF
Seats Seal: Santoprene
Differential Pressure Ratio: 1:1
Max Air Inlet Pressure: 125 psi
Max Solid Size: 1/16" (1.6 mm)
Lower Temperature Limit: 32 F
Upper Temperature Limit: 175 F
Primary Diaphragms Material: Santoprene
Product Weight: 9 lbs (4.05 kg)
Recommended Spare Parts:
01-9985-20, Air End Repair Kit
01-9805-58, Wet End Kit
00-8340-99, Air Filter/Regulator Kit, 1/4"
Voigt-Abernathy displays pricing following our manufacturer's internet pricing policies. Voigt-Abernathy offers special pricing for many of our customers. To get a custom pricing quote, call us at (205) 655-0434 or email sales@voigtab.com
