Product Description
P/N: GAEMDSA

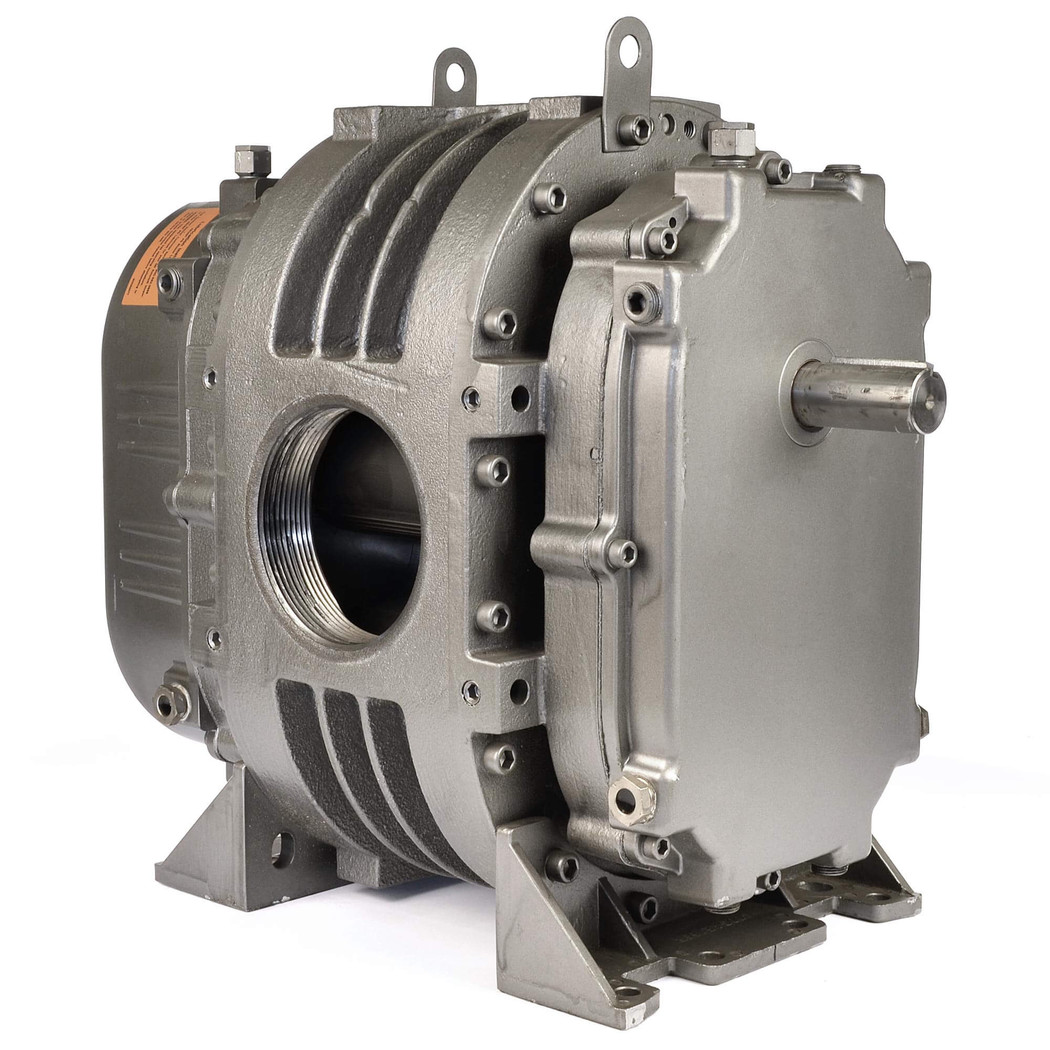

Gardner Denver- Sutorbilt 5M Legend Blower
Roots Equivalent Unit: Roots 56 URAI
The Sutorbilt 5M Positive Displacement Blower is part of Gardner Denver’s Sutorbilt Legend series. Newer 5M models may be labeled as 5MS blowers. Older versions include the 5MR, 5MP, 5ML, 5MF, and 5MB models.
| Flow Range: | to 542 CFM |
| Max Δ Pressure: | 13 psi |
| Max Δ Vacuum: | 16″ Hg |
| Maximum RPM: | 2850 |
| Minimum RPM: | 764 |
| Max ΔT: | 180ËšF |
| Connection: | 4″ FPT |
| Shaft Dia.: | 1.125″ |
| Drive End Lubrication: | Grease |
| Gear End Lubrication: | Oil |
| Required Oil for Gear End (Horizontal Unit): | 40 ounces |
| Required Oil for Gear End (Vertical Unit): | 18 ounces |
| Recommended Oil: | Aeon PD |
| Unit Weight: | 232 lb |
| Mounting feet: | Universal |
| Configurations: | LHC, RHC, BHC, THC |
