Product Description

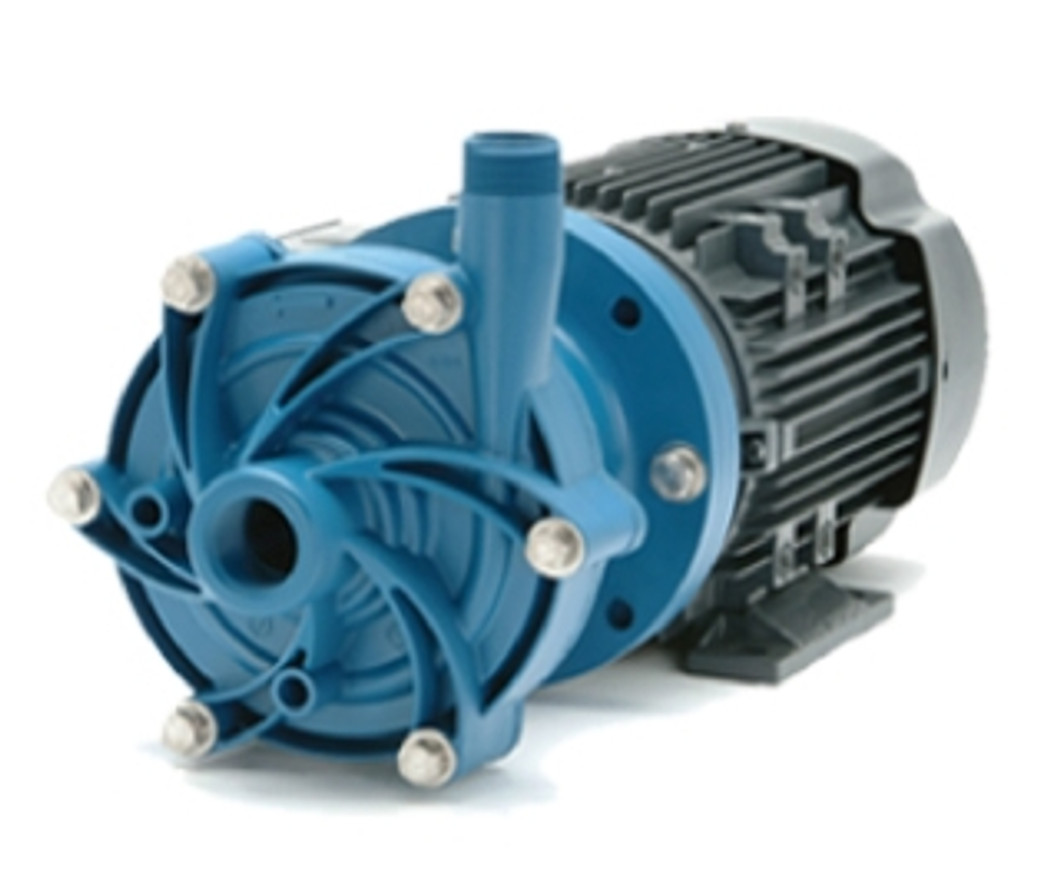

Finish Thompson Mag-Drive Pump Model DB9P
Part No. DB9P-FF-10P-14-HS-SR
Polypropylene Material of Construction
Horizontal Configuration
1" Inlet x 1" Outlet Flanged Ports (upgrade)
Carbon Bushings
FKM O-ring
4.18" Diameter Impeller
10 Pole Magnet (Upgrade)
143/145TC Motor adapter (upgrade), (motor not included)
Hastelloy C Shaft (upgrade)
316 Stainless Steel Clamp Ring (upgrade)
180 deg. F maximum Temperature
80 PSI Maximum Working Pressure
