Product Description
P/N 2875-95

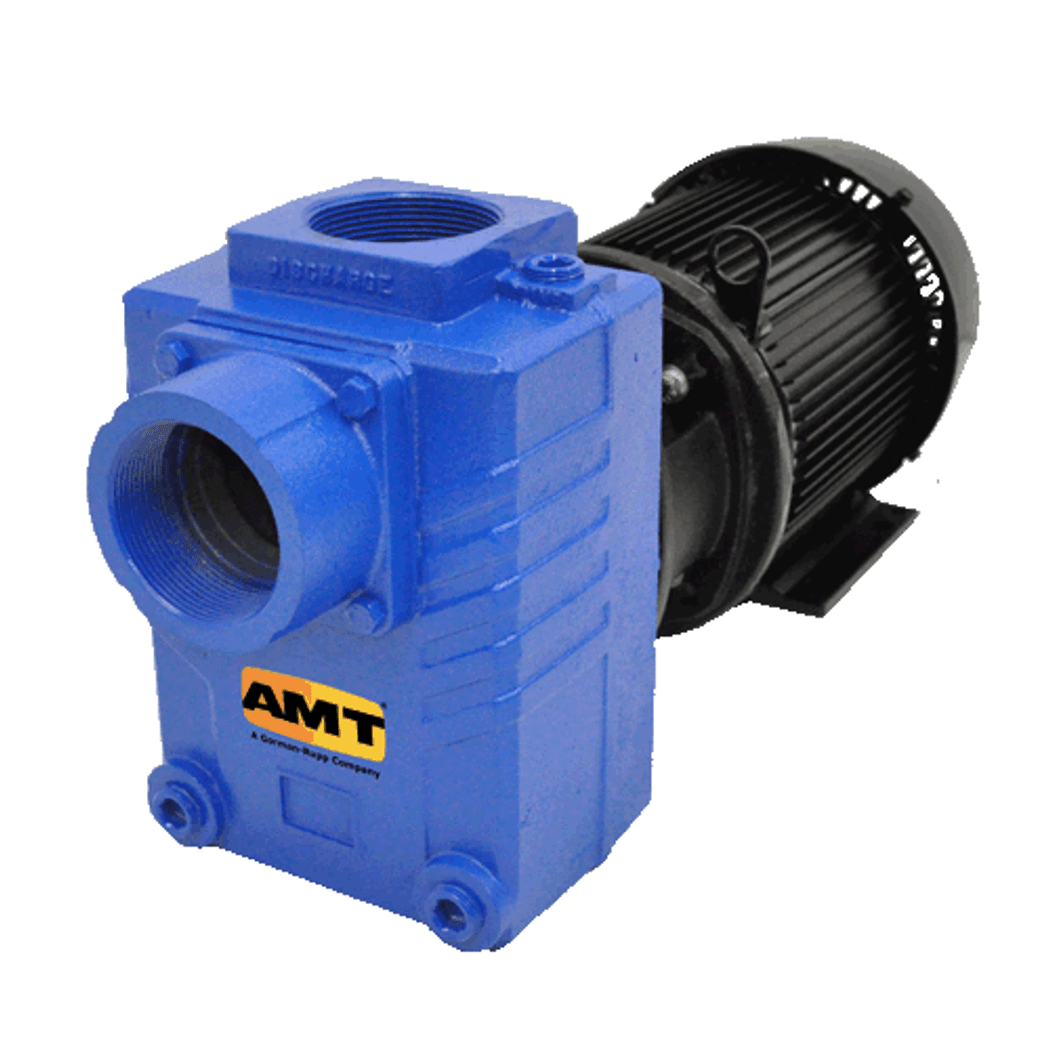

AMT® 3” Self-Priming Centrifugal Pump
The AMT® Self-Priming Cast Iron Centrifugal Pumps are versatile and robust, ideal for high-capacity applications such as dewatering, liquid transfer, circulation, drainage, and irrigation. Key features include a dual volute design that minimizes radial loads on the motor, ensuring improved performance and longevity. The centerline discharge design prevents vapor binding, simplifying piping connections.
These pumps come equipped with a self-cleaning, semi-open stainless-steel impeller, capable of handling semi-solids up to 3/8" in diameter. Additionally, built-in check valves facilitate quick priming, while fill and drain plugs enhance ease of installation and maintenance. Overall, these pumps are engineered for efficiency and reliability in demanding environments.
| HP: | 5 |
| Type: | TEFC |
| Frame: | 184JM |
| Voltage @ 60 Hz+: | 208-230/460 |
| Phase: | 3 |
| Ship Weight: | 173 |
| Quick Ship Pump: | Yes |
| Full load amps: | 14/7 |
| Housing Material: | Cast Iron |
| Impeller Material: | Stainless-steel |
| Seal Material: | Buna-N |
| Shaft Seal: | Buna-N/SS |
| Maximum Temperature: | 180 F |
| Maximum Head: | 90 feet |
| Dimensions: | L 26.6" x W 12" x H 11.8" |
| Port: | NPT |
| Inlet Diameter: | 3" |
| Outlet Diameter: | 3" |
| Maximum Gallon per minute: | 310.0 |
| Maximum Pressure: | 39 PSI |
| Maximum Suction Lift: | 20 ft |
