Product Description

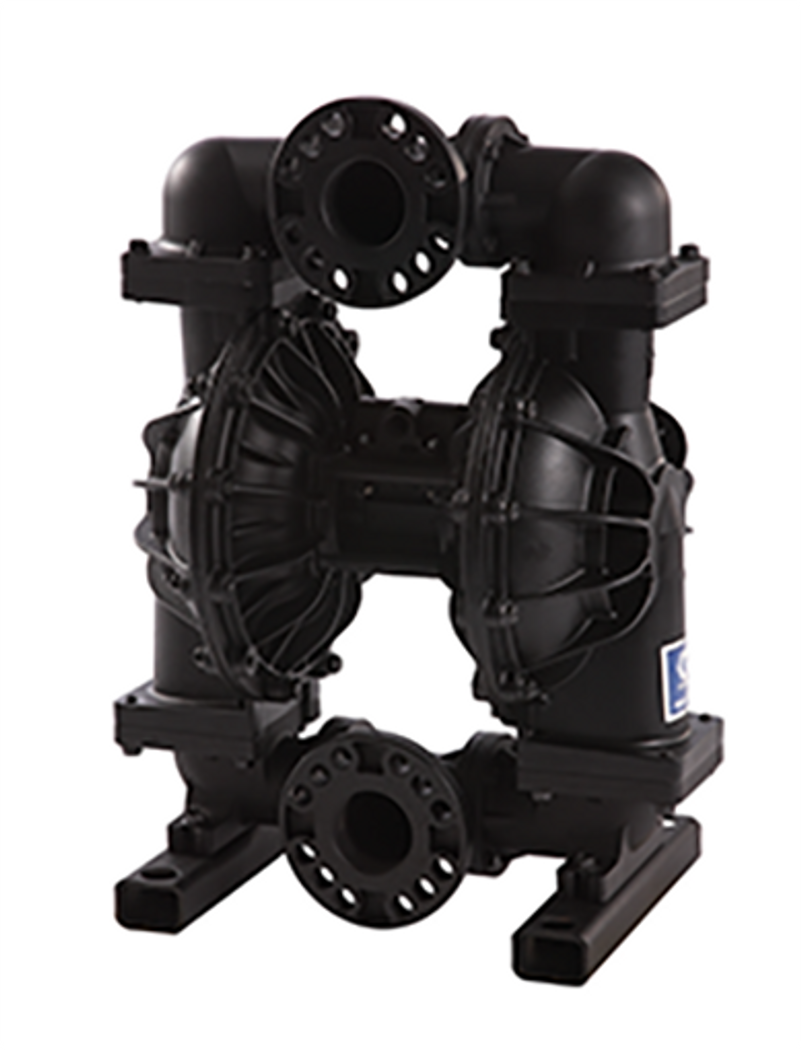

652036, Graco Air Operated Double Diaphragm Pump 3300
Configuration No. 3300A-A01AA1SPSPSPBN
Technical Specifications
| Graco Pump Model No. | 3300 |
| Part No. | 652036 |
| Pump Type | Air Operated Double Diaphragm |
| Certification | ATEX |
| Fluid Section Material | Aluminum |
| Seat Material | Santoprene |
| Ball Material | Santoprene |
| Diaphragm Material | Santoprene |
| Manifold O-rings | Buna-N |
| Air Valve Material | Aluminum Standard Air Valve |
| Connection Size | 3 inch |
| Connection Type | ANSI/DIN & NPT |
| Porting | Aluminum Center Flange |
| Maximum Working Pressure | 125 psi (8.6 bar) |
| Maximum Free Flow Delivery | 300-gpm |
| Maximum Pump Speed | 103 cpm |
| Displacement Per Cycle | 2.90 gallon (1.96 liter) |
| Maximum Suction Lift | 8 ft. dry, 28.5 ft. wet |
| Maximum Size Solids | 0.50 in (12.7 mm) |
| Typical Sound Level | 86-99 dBA |
| Maximum Air Consumption | 90 scfm |
| Air Inlet Size | 3/4” NPTF |
| Weight | 178 lbs. |
| Availability | Stock, ready for immediate shipment |
